Metal sheet and Tube Laser Cutting Machine

Metal Laser Cutter an efficient and precise metal cutting equipment that can cut both sheets and pipes with high stability and reliability.

Suitable for cutting on metal sheet and pipe

3 years warranty

7*24 hours customer support

Send Email:

info@horistarmachinery.com

Products

Products DETAILS

Metal sheet and Tube Laser Cutting Machine

Technical parameters

Model	HM-SP3015	HM-SP6015	HM-SP4020	HM-SP6025	HM-SP8025	HM-SP12025
Working area	3000*1500mm	4000*1500mm	4000*2000mm	6000*2500mm	8000*2500mm	12000*2500mm
Laser power	1KW-60KW
Laser source	Max/Raycus/ IPG
Control system	Cypcut
Driver and Motor	Yaskawa/Fuji/Panasonic
Position accuracy	±0.03mm
Repeat position accuracy	0.02mm

Cutting thickness

Laser Power/Material	Stainless steel	Carbon steel	Aluminum	Brass
1KW	5mm	10mm	3mm	/
2KW	8mm	16mm	8mm	4mm
3KW	12mm	20mm	12mm	6mm
6KW	20mm	25mm	16mm	8mm
12KW	40mm	40mm	40mm	14mm
20KW	70mm	60mm	60mm	16mm
30KW	70mm	70mm	60mm	20mm
40KW	100mm	80mm	100mm	20mm
60KW	150mm	100mm	100mm	30mm
Noted: 1. All parameters in the sheet are the maximum cutting thickness. For the thickness of the plate to be cut in batches, please follow the salesperson's advice. 2. This cutting thickness will vary depending on the material of the plate, the purity of the gas, focus length, etc. 3. Aluminum and brass are highly reflective materials and it is recommended to use a higher laser power.

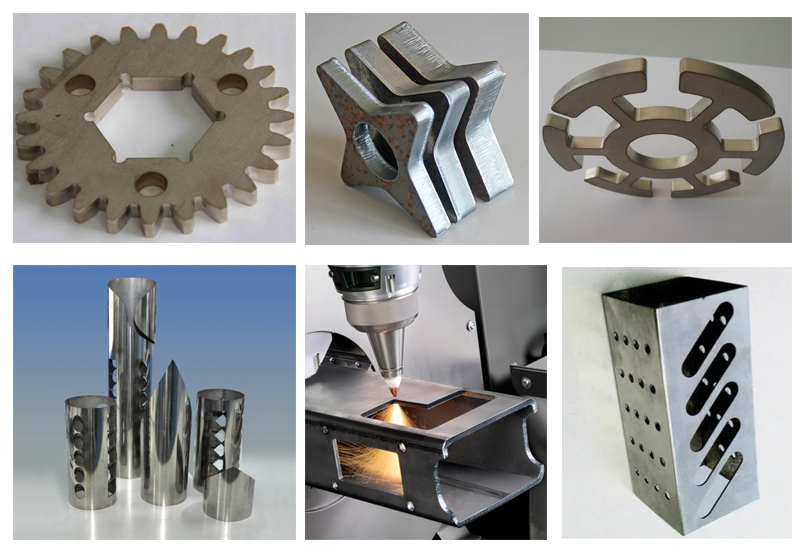

Cuttting Samples

Application industry

Metal laser cutting machines are used in various manufacturing and processing industries such as sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, and metal external processing.
