Pipe Laser Cutting Machine

The pipe cutting machine is a machine designed to cut metal pipes and tubes. Laser tube cutting machines can cut stainless steel, carbon steel, mild steel, galvanized steel, aluminum, copper, brass and other metal materials.

High precision

Fast speed

Send Email:

info@horistarmachinery.com

Products

Products DETAILS

Pipe Laser Cutting Machine

Technical parameters

Model	HM-P6	HM-P8	P12
Pipe length	6000mm	8000mm	12000mm
Maximum diameter of pipe	350mm
Minimum diameter of pipe	20mm
Laser Power	1KW-20KW
Laser source	Max/ Raycus/ IPG
Control system	Cypcut
Driver and Motor	Yaskawa/Fuji/Panasonic
Cutting precision	±0.03mm

Cutting thickness

Laser Power/Material	Stainless steel	Carbon steel	Aluminum	Brass
1KW	5mm	10mm	3mm	/
2KW	8mm	16mm	8mm	4mm
3KW	12mm	20mm	12mm	6mm
6KW	20mm	25mm	16mm	8mm
12KW	40mm	40mm	40mm	14mm
20KW	70mm	60mm	60mm	16mm
30KW	70mm	70mm	60mm	20mm
40KW	100mm	80mm	100mm	20mm
60KW	150mm	100mm	100mm	30mm
Noted: 1. All parameters in the sheet are the maximum cutting thickness. For the thickness of the plate to be cut in batches, please follow the salesperson's advice. 2. This cutting thickness will vary depending on the material of the plate, the purity of the gas, focus length, etc. 3. Aluminum and brass are highly reflective materials and it is recommended to use a higher laser power.

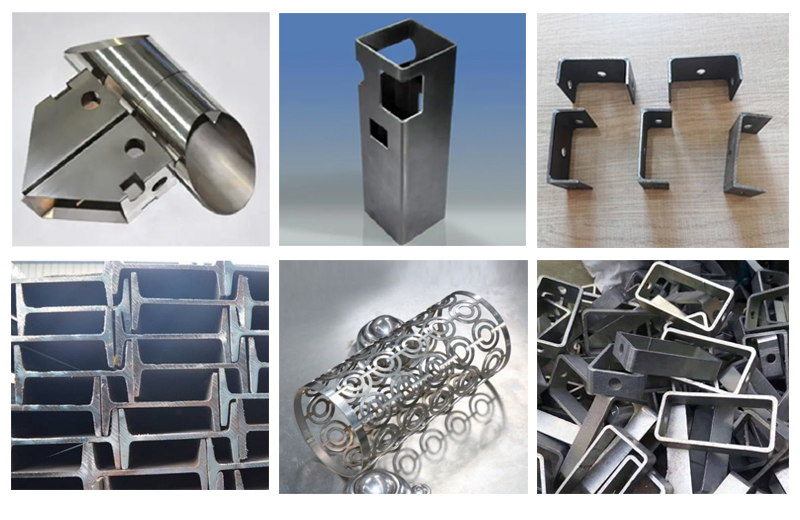

Cutting samples

Application indusrty
Laser tube cutting machines are widely used in: stainless steel tubes, machinery manufacturing, elevators, sheet metal, kitchen equipment, chassis cabinets, machine tool equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting processing, etc.
