Platform Automatic Laser Welding Machine

Platform automatic laser welding machine can achieve seam welding, T-welding, overlap welding, edge welding, etc. Widely used in the welding of Stainless steel, die steel, carbon steel, nickel, zinc, aluminum, especially in thin plate welding has obvious

Provide multi-language display

Support customized fixtures

CCD system for accurate positioning and convenient observation

Products DETAILS

Platform Automatic Laser Welding Machine


Technical parameters

Model HM-PW1000 HM-PW1500 HM-PW2000 HM-PW3000
Laser power 1000W 1500w 2000W 3000W
Whole macine power 6KW 8KW 10KW 12KW
Working Type Platform
Working area 300*500mm
Function Welding
Working voltage 220V/380V±10% 50HZ/60HZ
Wavelength 1080±10nm
Observation system
CCD microscope vision system
Cooling mode Water cooling

Welding parameters


Stainless steel Cabon steel Galvanized sheet
Aluminum
HM-W3000 8mm 8mm 8mm 6mm
HM-W2000 5mm 5mm 5mm 5mm
HW-W1500 4mm 4mm 4mm 4mm
HW-W1000 3mm 3mm 3mm 3mm

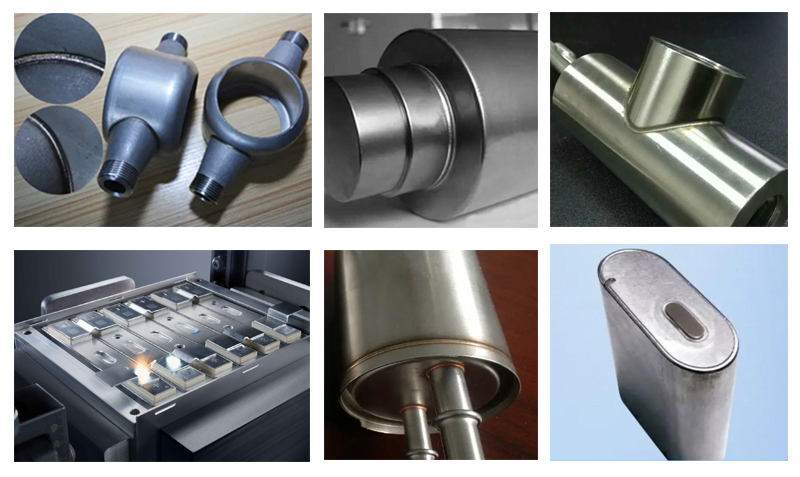

Welding Samples


Application industry


Laser welding machines have been widely used in many industries, including the metal industry, electronics industry, mold industry, hardware industry, automobile industry, jewelry industry, automobile manufacturing industry, electronics and electrical industry, biomedicine, aerospace field, new energy lithium battery industry, metal processing industry, construction industry, etc.
