CNC Bending machine
High Cost Performance
Quality Control
International Common Part
Products
Products DETAILS
CNC Bending machine
Product series
Model
Bending Force
Bending Length
Poles Distance
Throat Depth
Ram Stroke
Open Height
Main Motor
Unit
KG
mm
mm
mm
mm
mm
KW
HM-50T-1300
500
1300
1120
250
150
460
5.5
HM-70T-1600
700
1600
1300
300
150
460
5.5
HM-125T-3000
1250
3000
2700
400
200
470
7.5
HM-135T-4000
1350
4000
3100
400
200
480
11
HM-170T-3200
1700
3200
2700
450
200
480
15
HM-170T-4000
1700
4000
3100
450
200
480
15
HM-210T-2500
2100
2500
2050
450
200
480
18.5
Technical Parameters:
| CNC control system | Delem |
|
Number of CNC axis |
4+1 (Y1,Y2,X, R,W) |
|
Automatic Level |
Full automatic |
|
Compensation |
Mechanical compensation |
|
Hydraulic system |
Special digital closed-loop hydraulic system (Germany brand) |
|
Main motor |
Wannan Motor |
|
Electrical Control |
French Schneider |
|
Linear Guides |
HIWIN |
|
Working voltage |
380V |
|
Installation site |
Clean and less dusty |
|
Temperature requirements |
-5℃-40℃ |
Application
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurants, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising Company.

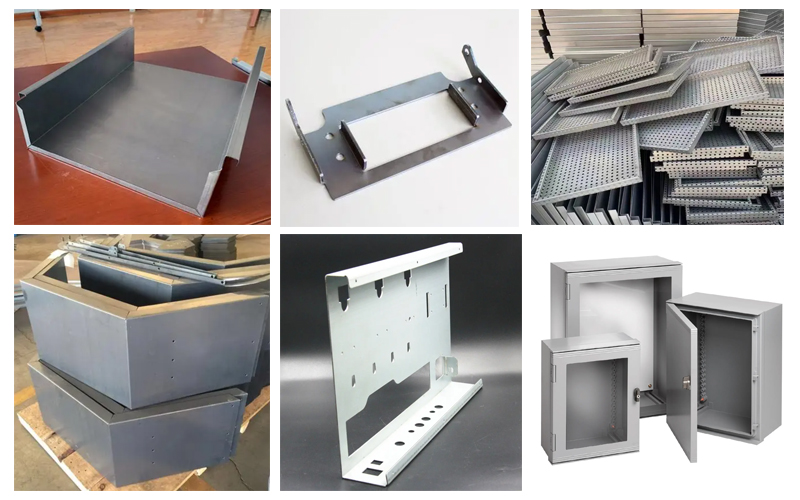

Samples
